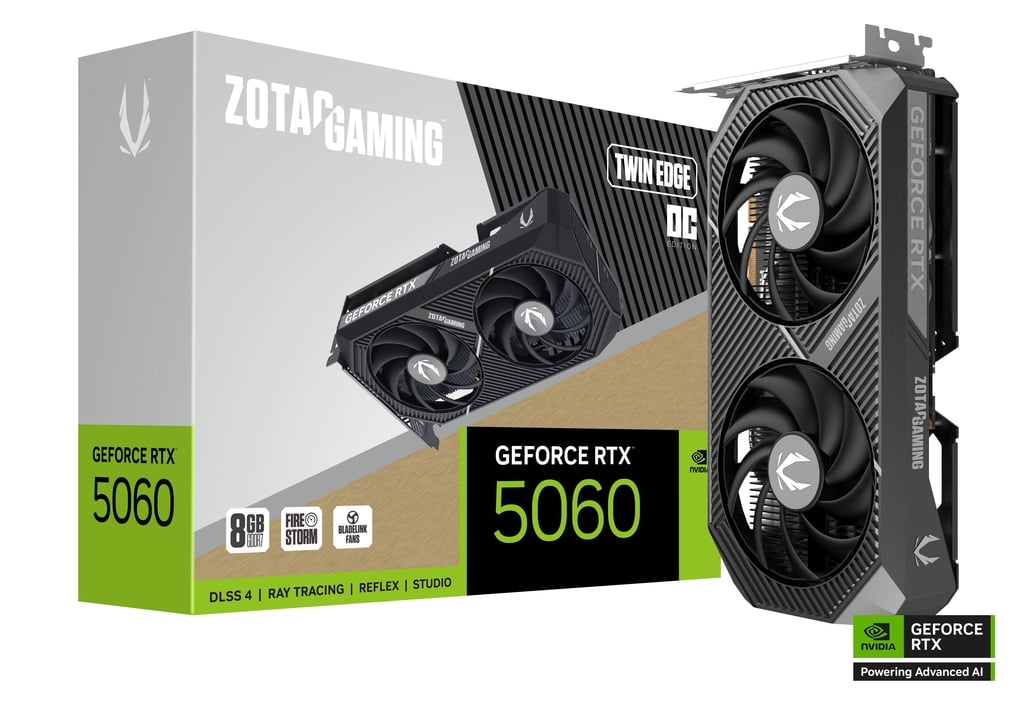

ZOTAC RTX 5060 Twin Edge OC Graphics Card

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a strong factory OC and solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.

Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- SFF-Ready compact Graphics Card

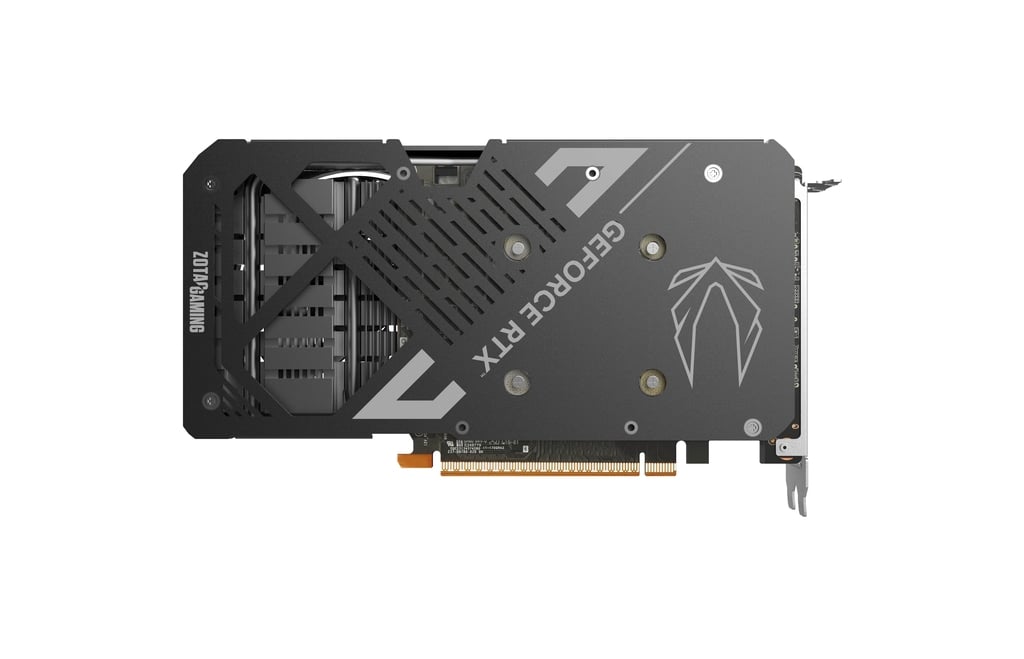

- Metal Backplate

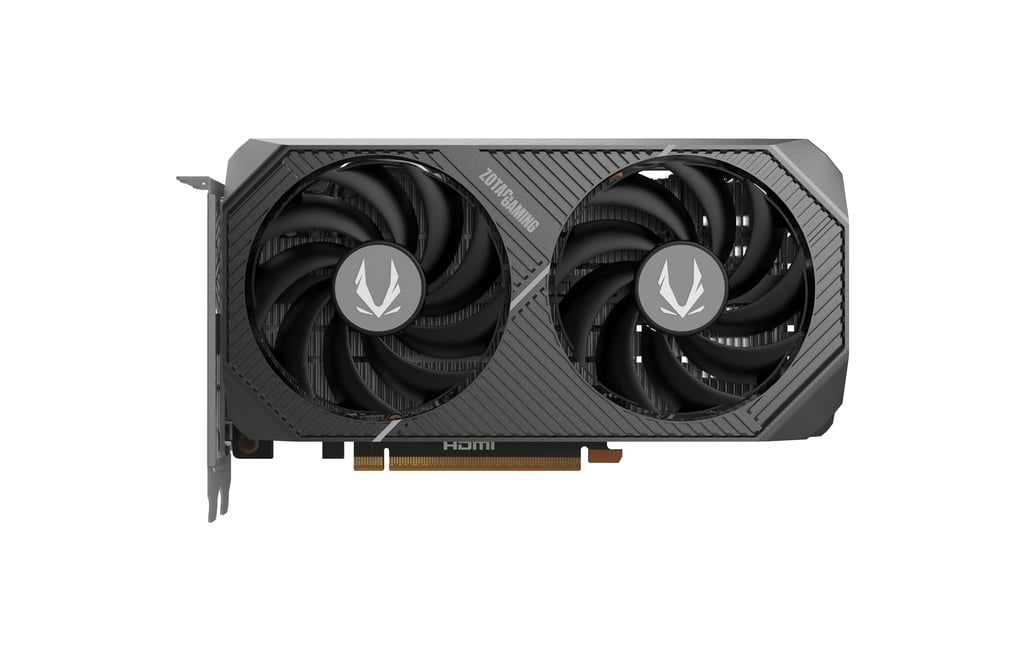

- BladeLink Fans
- All-new FireStorm Utility

SPECIFICATIONS:

• GPU:
  NVIDIA GeForce RTX 5060 GPU
• CUDA Cores:
  3840
• Video Memory:
  8GB GDDR7
• Memory Bus:
  128-bit
• Engine Clock:
  2527 MHz
• Memory Clock:
  28 Gbps
• PCI Express:
  PCI Express 5.0 x8

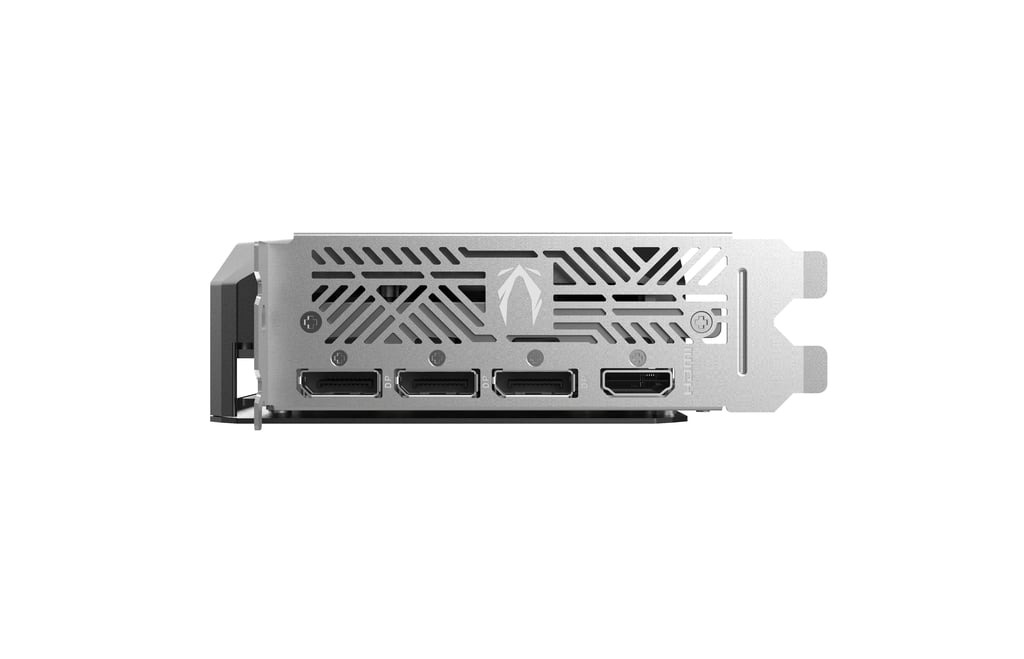

• Display Outputs:
  3 x DisplayPort 2.1b with UHBR20
  (up to 4K 480Hz or 8K 165Hz with DSC)
  1 x HDMI® Connector
  (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)
• HDCP Support:
  2.3
• Multi Display Capability:
  Quad Display
• Power Consumption:
  145W
• Power Input:
  1 x 8-pin power input
• DirectX:
  Microsoft DirectX® 12 Ultimate
• OpenGL:
  4.6
• Cooling:
  Air Cooled
• Slot Size:
  2
• SLI:
  No
• Supported OS:
  Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
• Card Length:
  220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
• Accessories:
  User Manual
